SPECIFICATIONS

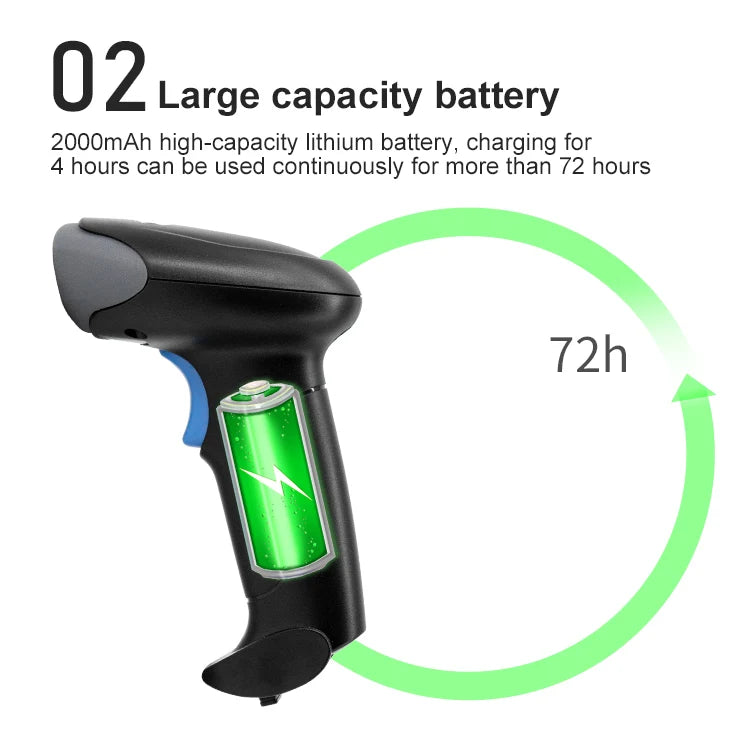

Battery: 2000 mAh

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Choice: yes

Colour Depth: 32 Bit

Hign-concerned Chemical: None

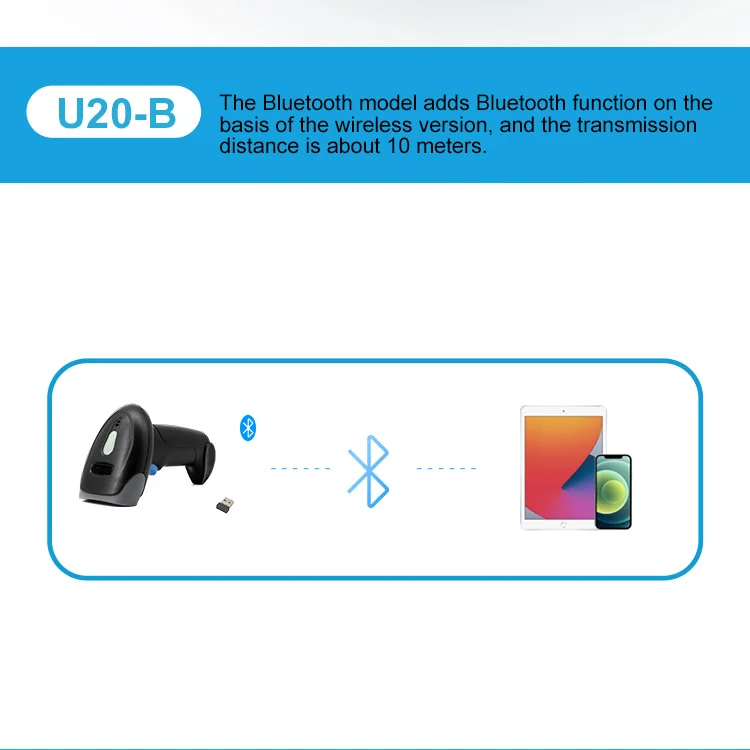

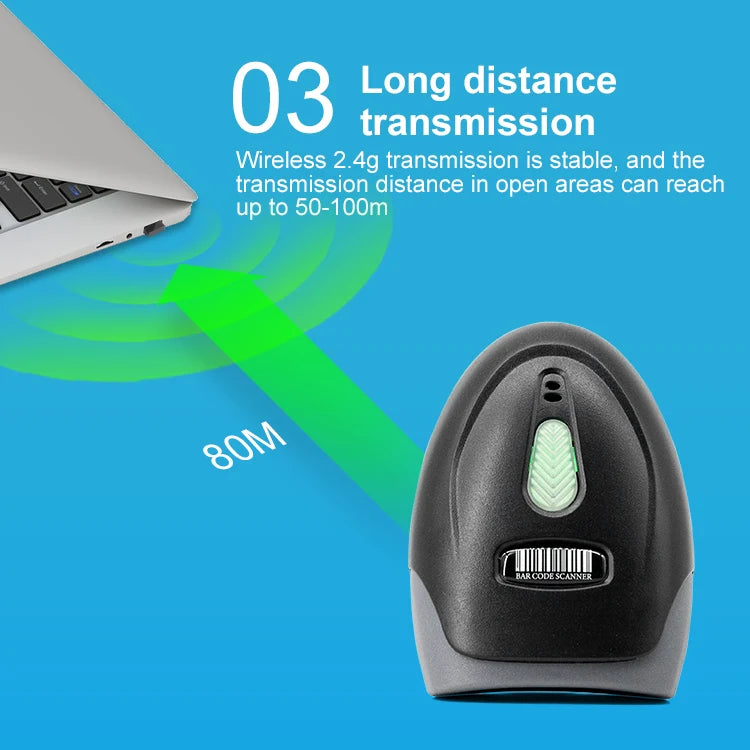

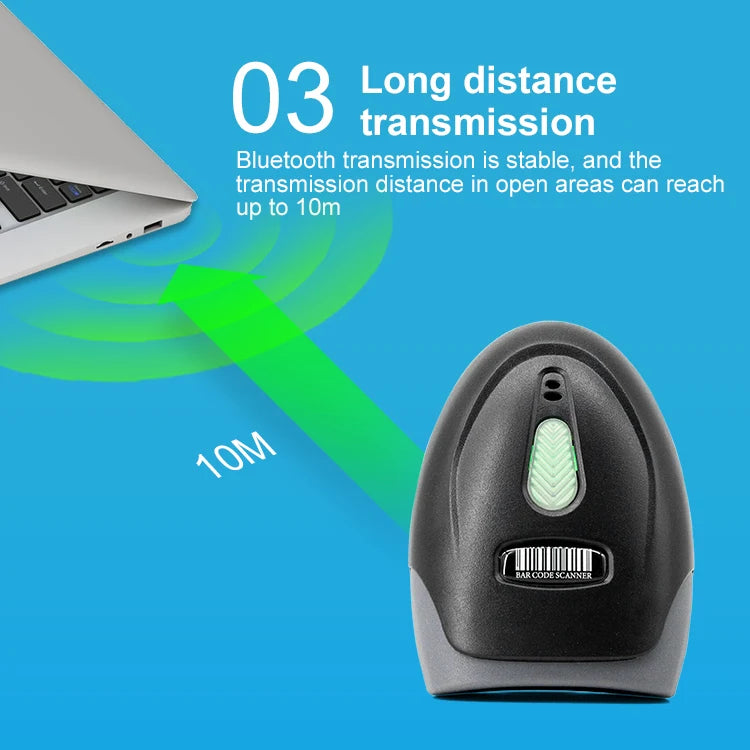

Interface: USB/2,4G WIFI/Bluetooth

Interface Type: USB/Bluetooth

Model Number: U20

Novelty: New

Optical Resolution: 600*600

Origin: Mainland China

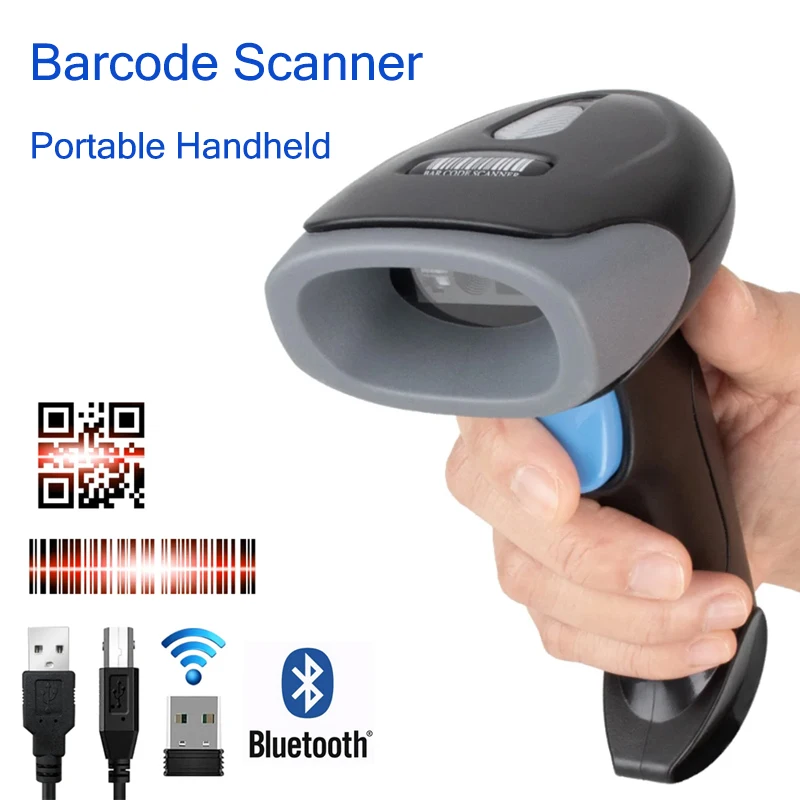

Product Type: Bar Code Scanner

Scan Breadth: A4

Scan Element Type: CMOS

Scan Speed: 200 scans/second

Scanning Light Source: Natural Light+LED

Signal Connection Type: Bluetooth,Wi-Fi

Type: Barcode Scanner

Weight: 270g

Product features:

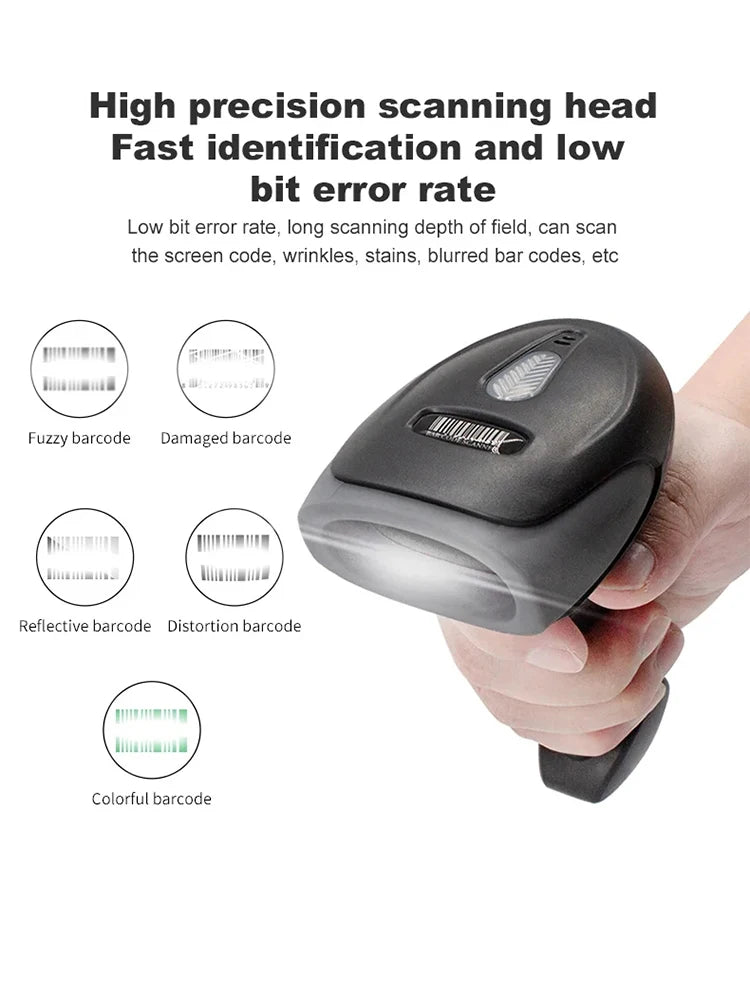

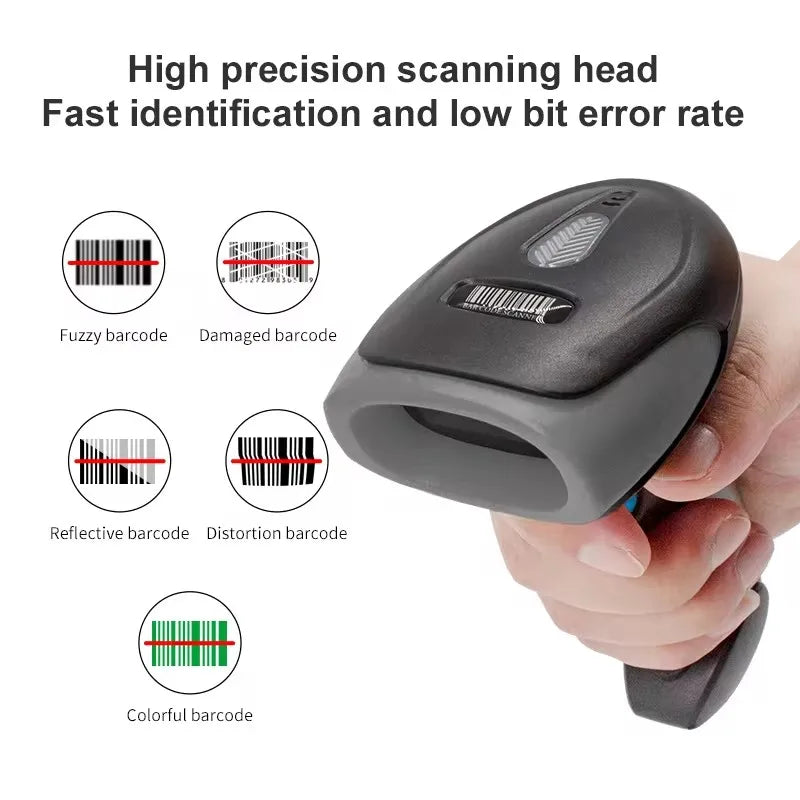

1. High-speed decoding and responsiveness

2. Compact, lightweight, ergonomic and comfortable to handle.

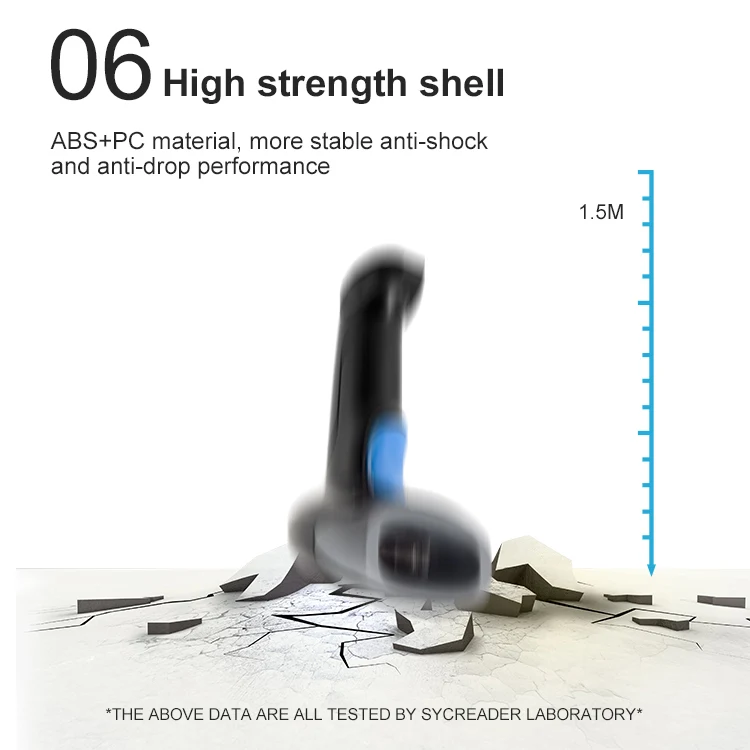

3. Excellent durability: Dustproof and waterproof IP54 and can withstand drops to concrete at a height of 1.5m.

Parameters:

Type:U20

Scan mode:Key trigger/auto-sensing/continuous scanning

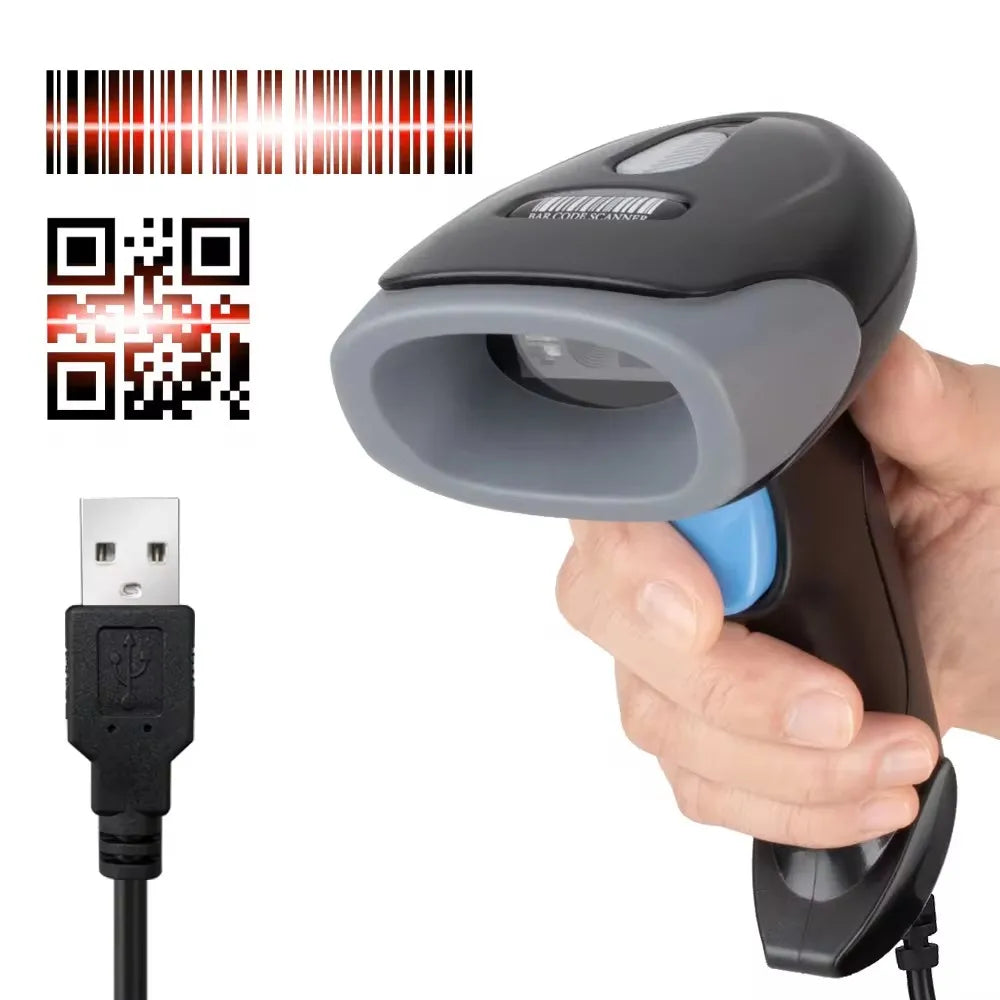

Interface type: USB

Prompt mode: Buzzer, LED light

How it is set up: Manually scan the setup codes one after the other

Housing material : ABS + PC

Cable standard: Straight line 1.6m

Exterior dimensions: 160mm×66mm×95mm(product); 195mm×105 mm×80mm(packaging)

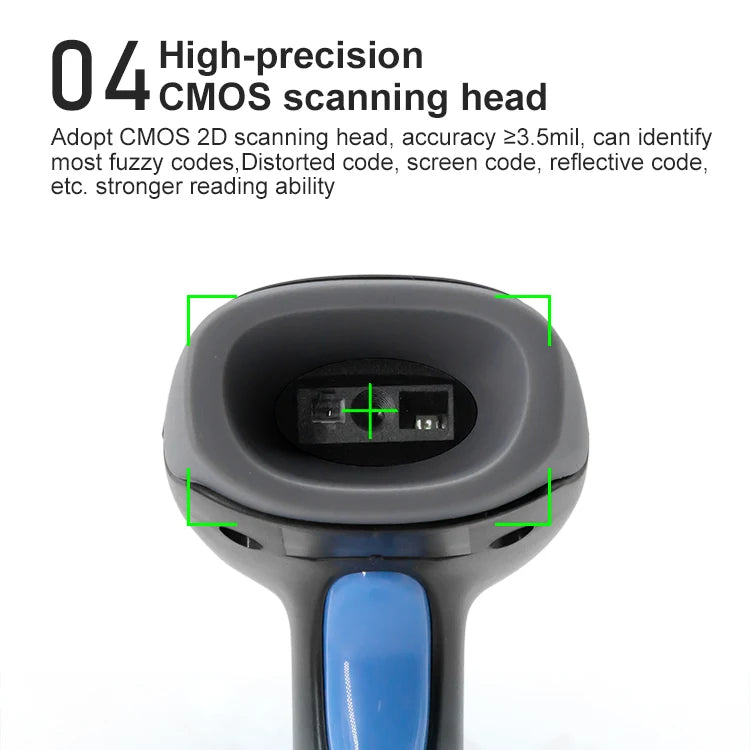

Sensors: CMOS

Resolution: 640*480

Light source: White LED

Scan angle: ± 60°, ±60°, 360° (elevation, declination, rotation).

Scan rate: 120 fps

Field of view : 48° (H) x 30° (V)

Printing contrast: Minimum 15%.

Decoding kind:

1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite

2D: QR Code, Data Matrix (DM), PDF417, MaxiCode, Aztec Code, support mobile screen reading

Minimum resolution: 1D code 3.5mil; QR code 10MIL

Depth of field QR (15mil) 30~210mm

QR payment code (mobile code) 80~550mm

Data Matrix (10mil) 30- 140mm

PDF 417 (6.7mil) 50- 120mm EAN-13 (13mil) 50~280mm

Code 39 (8mil) 30- 190mm

Code 128 (15mil) 80~320mm

Input voltage: DC5V ± 10%

Current: Working: 350 mAh; Standby: 130 mAh

Environment parameters: Temperature 0°C-50°C (working); -40°C~+60°C (storage).

Humidity: 5%-95% non-condensing

Ambient brightness: Max.5,000 Lux (fluorescence)

Seismic resistance: It can withstand a drop in the air of 1.5m

Note:

2D barcode scanner,it also compatible with scanning 1D codes.
